Flame Proof Geared Motor

We are a leading manufacturers and exporters of flame proof gear motor including mechanical speed variator flameproof motors type, flange mounted flame proof geared motors from Mumbai, India to all over the world. Flame proof geared motors manufacturer and supplier in Mumbai, India to all over the world. Flame proof gear brake motors and flame proof worm geared motor flange type industry in affordable price with reliable and durable feature.

flame_proof_geared_motor

Extra Features :-

  • Gas group IIC, Temperatures class T3, ATEX approvals, DGMS Certified, Special Voltages: 380V/400V/460V, Non standards Frequency: 60Hz, Forced Coolings, Degree of protections: IP56/IP65/IP66, VFD suitabled with VPI/IGT, Space Heater, Epoxy Gel Coats, Anticorrosion Paints, PTC Thermistor, RTD, extended shafts, double compression gland, special bearing, Terminal box position: LHS/TOP,
  • This motor has found many usages in different application such as plastic, textile, papers, cements, pharmaceutical, leathers and more.

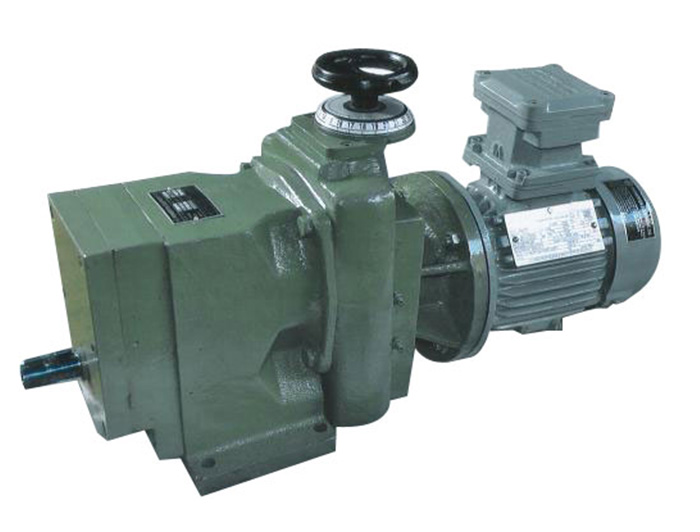

Mechanical_Speed_Var-pop

We are offering high performance and reliable FLAME PROOF mechanical speed variator, which is based on a mechanism that optimizes the operations, extending the lifetime of the core part, and allow the speed variators to run cooler and smoother. This is available in range from 0.1 RPM to 3200 RPM, from 0.18 KW to 3.7 KW capacity. This deliver speed variations from 1.5 RPM to 7.5 RPM, 2 RPM to 10 RPM, 4 RPM to 20 RPM, 8 RPM to 40 RPM, 13 RPM to 65 RPM, 20 RPM to 100 RPM, 40 RPM to 200 RPM and 640 RPM to 3200 RPM.

Some of the special feature of our mechanical speed variator is jerk less smooth starts, step less speed variations and variables torque applications. This variator is supplied with worm geared box and helical gearbox.

flange_mounted_flame_proof_geared_motor

We offer PEC MAKE FLANGE MOUNTED FLAME PROOF Gear Motors, which are availables in various specification such as 0.25 HP to 100 HP, output 0.01 RPM to 500 RPM and torque ranges upto 45,000 KGM.

Extra Features :-

  • Gas group IIC, Temperatures class T3, ATEX approvals, DGMS Certified, Special Voltage: 380V/400V/460V, Non standards Frequency: 60Hz, Forced Cooling, Degree of protections: IP56/IP65/IP66, VFD suitables with VPI/IGT, Space Heater, Epoxy Gel Coats, Anticorrosion Paints, PTC Thermistor, RTD, extended shaft, double compression gland, special bearing, Terminal box position: LHS/TOP.
  • This motor has found various usages in different application such as plastic, textile, papers, cements, pharmaceutical, leather and more.
