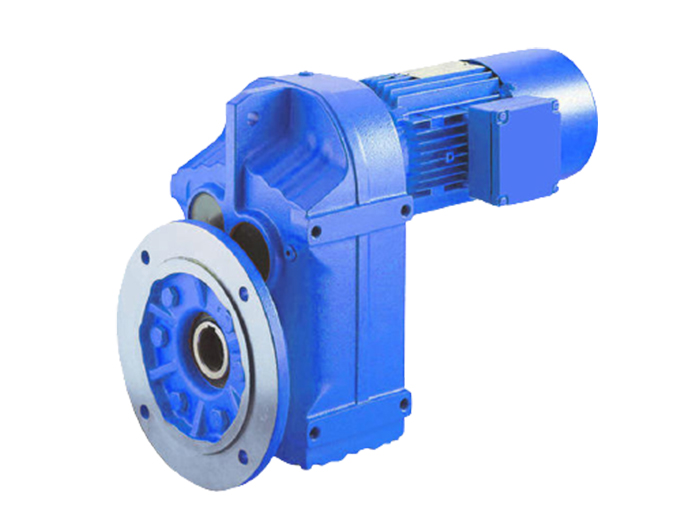

Shaft Mounted Helical Geared Motor (F-Series)
Prominent & leading Manufacturer and Exporter from Mumbai, we offer Shaft Helical GearBoxes and Geared Motor such as Parallel Shaft Helical Geared Motor, Parallel Shaft Mounted Helical Geared Motor, Parallel Shaft Mounted Gearbox –F Series, Parallel Shaft Helical Geared Motor and many more items.
A rugged and dependable Shaft mounted helical geared motor ideal for all material handling applications involving conveyors or augers and are also suitable for a wide variety of industrial fields.
Universal mounting, modular design, high efficiency, and quite operation makes this unit ideal for many applications and allows for simple and neat installation.
AF-series parallel shaft helical gearbox, available in cast iron casing only, Available in 6 sizes from 04 to 10, offer a large range of reduction ratios and are fully efficient in any working conditions.
Specifications :-
Sizes: F-04, F-06, F-07, F-08, F-09, F-10
Universal cases
High gearbox ratios (plug in pinion)
Power up to 45 kW
Gears with shaved or ground profile
Gearing with 2, 3, 4 and 5 reduction stages
Reduction ratios between 5:1 to 100:1 , 63:1 to 355:1, 360:1 to 5600:1 and 4500:1 to 20000:1
Cases in G200 grey cast iron for high strength and optimized with FEM analysis
Excellent mechanical strength
Accessories: torque arm, output flange, output shaft, shrink disk, backstop device, assembly/disassembly kit Your advantages
High power density
High permitted overhung loads
Multi-stage gear unit for low output speeds
Manufacturing Range :-
Stages: 2, 3, 4 and 5
Ratio :-
Double Reduction : 5.0 To 100
Triple Reduction : 63 To 355
Quadruple Reduction : 360 To 5600
Quintuple Reduction : 4500 To 20000
Capacity : 0.12 kW To 45 kW.
Output RPM : 0.31 To 290
Nominal Ratio : 5 To 20000
Shaft : Solid shaft, Hollow shaft
Typical Applications of Parallel Shaft Helical Geared Motors are as follows :-
Agitator drive
Carriage drive
Shelf access equipments
Vertical conveyors
